SQ(F) Industrial Cobalt-60 Irradiation Facility
This series of industrial cobalt-60 irradiation facilities is a fundamental product of our company. It primarily combines an overhead conveyor system with pneumatic source pass mechanisms, enabling dense arrangement of the source pass mechanisms and automatic turning of irradiation product boxes. This allows for multi-path and multi-station irradiation. Examples include a six-path fully automatic operation mode suitable for high-dose product irradiation sterilization (such as medical supplies), and an internal two-path fully automatic operation mode suitable for products requiring rapid processing (such as frozen foods). The SQ(F) is a versatile irradiation facility, particularly suited for users with complex product varieties, flexible operation mode requirements, and relatively low labor costs.
1. Introduction
This series of industrial cobalt-60 irradiation facilities is a fundamental product of our company. It primarily combines an overhead conveyor system with pneumatic source pass mechanisms, enabling dense arrangement of the source pass mechanisms and automatic turning of irradiation product boxes. This allows for multi-path and multi-station irradiation. Examples include a six-path fully automatic operation mode suitable for high-dose product irradiation sterilization (such as medical supplies), and an internal two-path fully automatic operation mode suitable for products requiring rapid processing (such as frozen foods). The SQ(F) is a versatile irradiation facility, particularly suited for users with complex product varieties, flexible operation mode requirements, and relatively low labor costs.
2. Advantages
- Suitable for irradiating various types of products.
- High energy utilization efficiency and low product dose uniformity ratio.
- Flexible operation modes: source overlap or product overlap.
- Wide irradiation dose range, capable of meeting different dose requirements.
- Simple equipment structure, easy maintenance, and low failure rate.
- Low manufacturing cost and low maintenance cost.
3. Technical Features
- Source Rack: Utilizes a plate-type source rack for bare source loading, offering high loading capacity and high energy utilization efficiency.

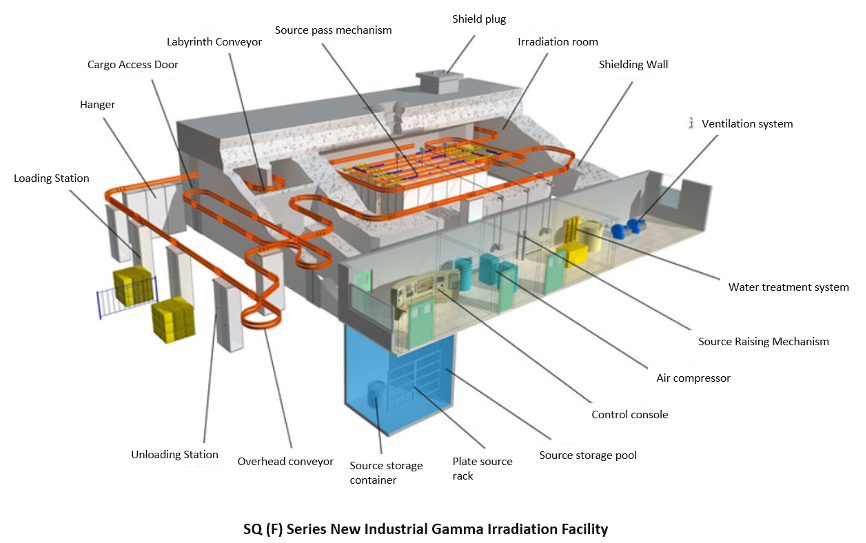

- Conveyor System: Employs a combination of overhead conveyor and pneumatic source pass mechanisms, enabling dense, multi-path, multi-station operation. Can operate in source overlap or product overlap modes, suitable for comprehensive, multi-variety irradiation.
- Barcode System: Uses a barcode system to monitor and manage irradiated products, providing traceability.
- Control System: Utilizes Siemens Programmable Logic Controllers (PLC) and WinCC data acquisition and management software.
- Safety Interlock System: Designed with comprehensive multiple, multi-level safety interlock measures, fully complying with Chinese national standards and IAEA safety requirements.
- Loading/Unloading System: Manual loading and unloading.
